Remote Camera Setups:

Cincinnati Open

4 Remotes

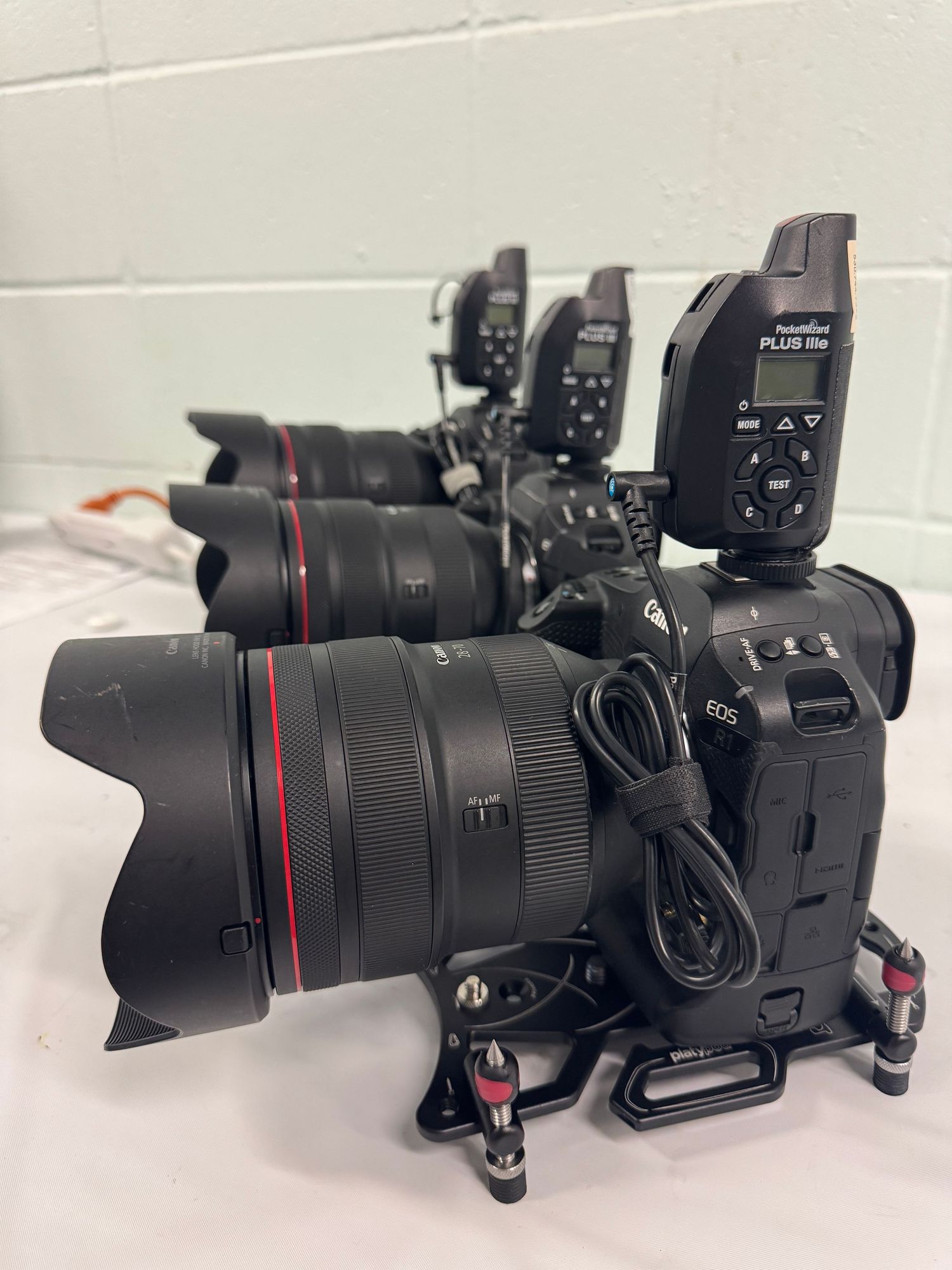

For the Cincinnati Open, we used 4 remotes, all canon R1's, across two courts -- networked and powered to capture every match, with images delivered live to me in the editing room.

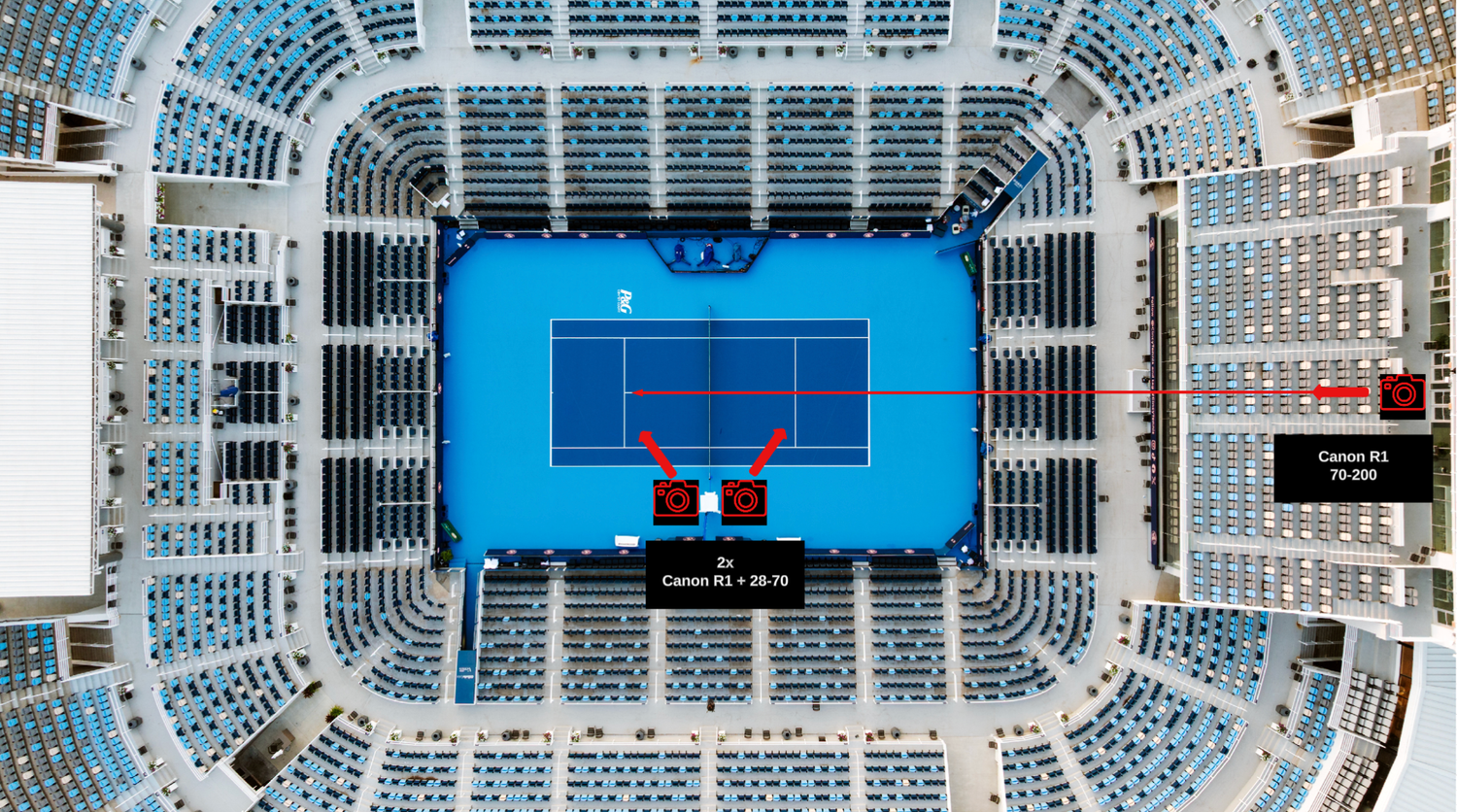

Center Court

Image Courtesy: Kevin Smith / Second Floor Media

The Chair Umpire Remote - Canon R1's / 28-70mm @ f/2

The Suite Remote - Canon R1 / 70-200 @ f/3.2

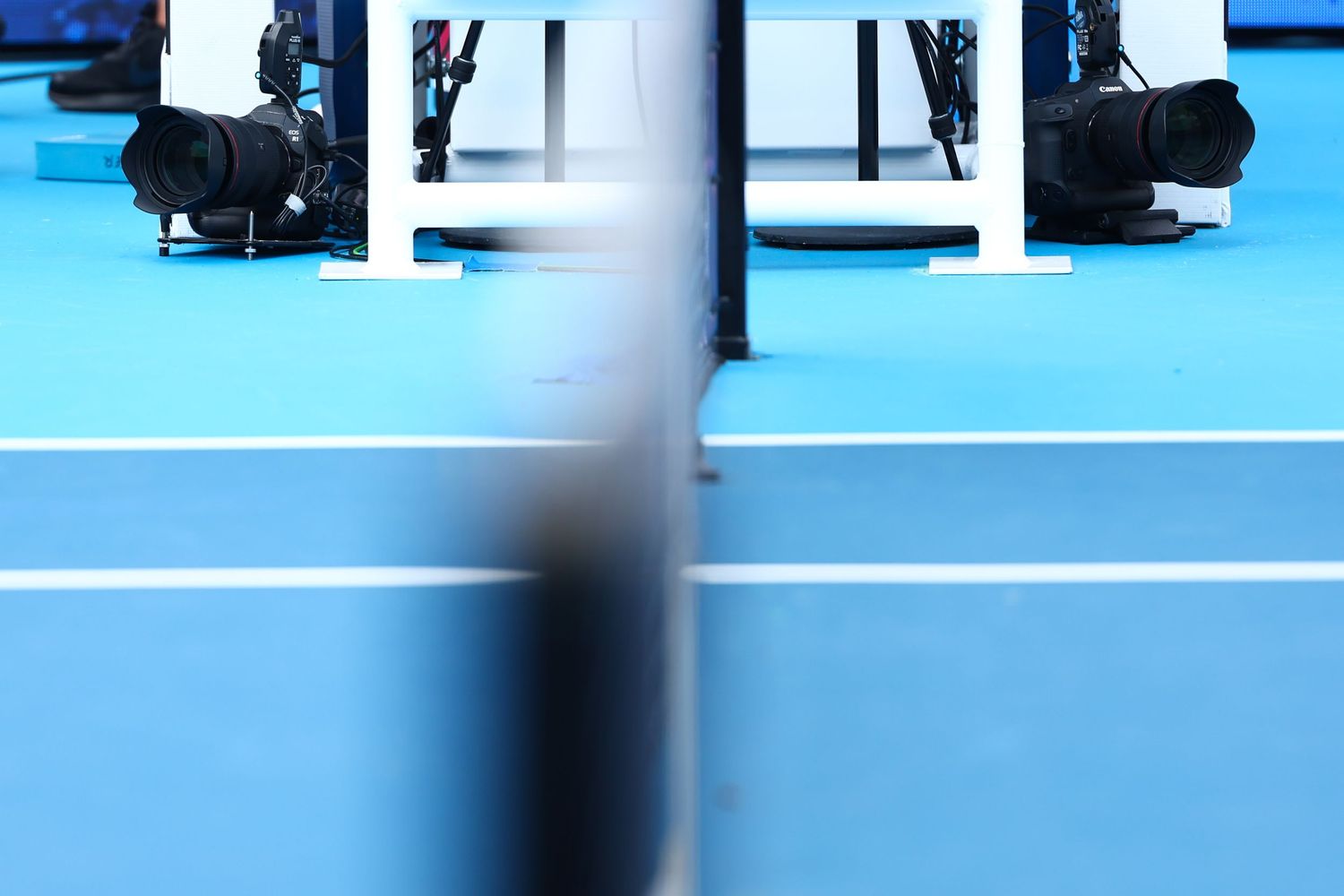

The Chair Umpire Remote

(x2)

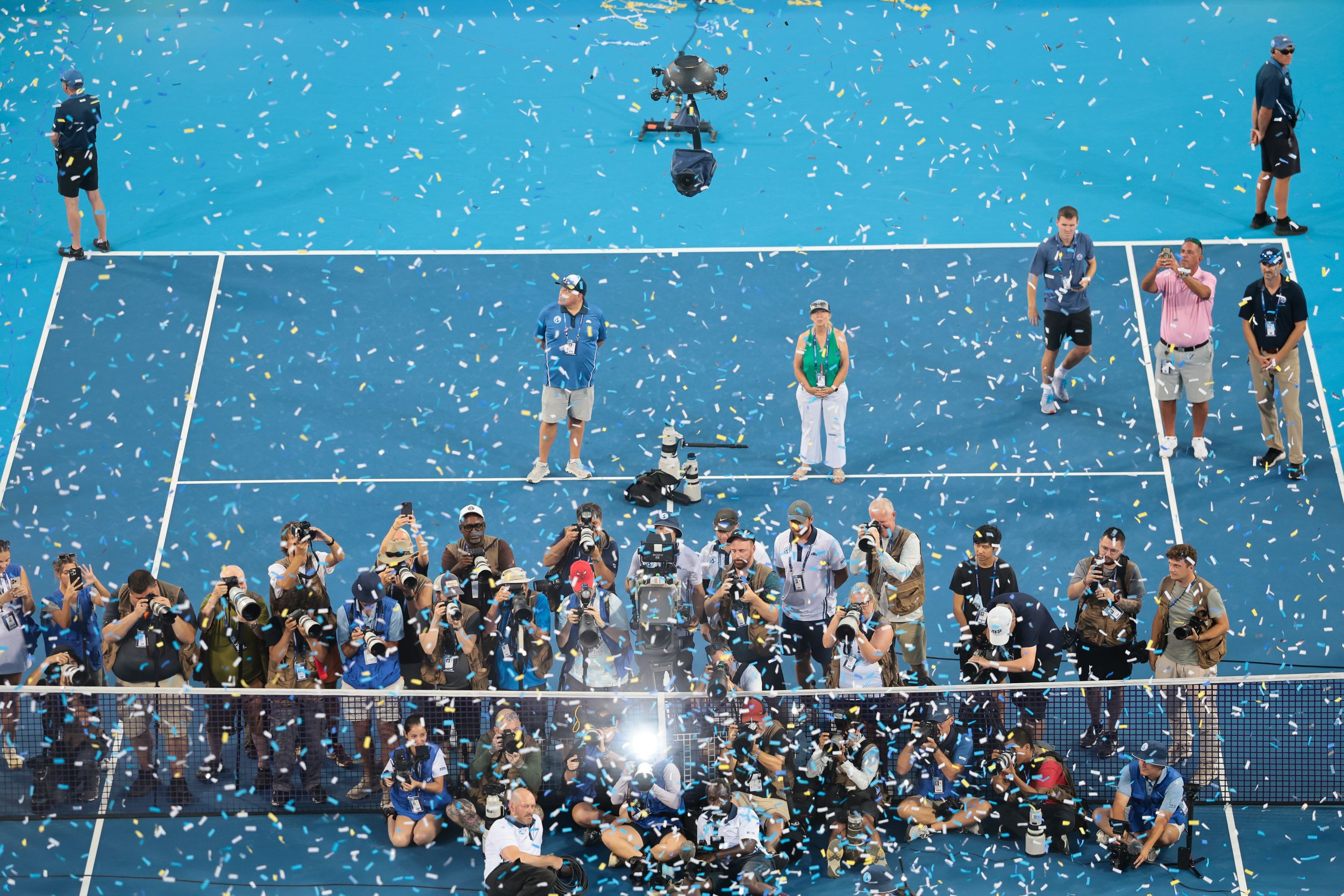

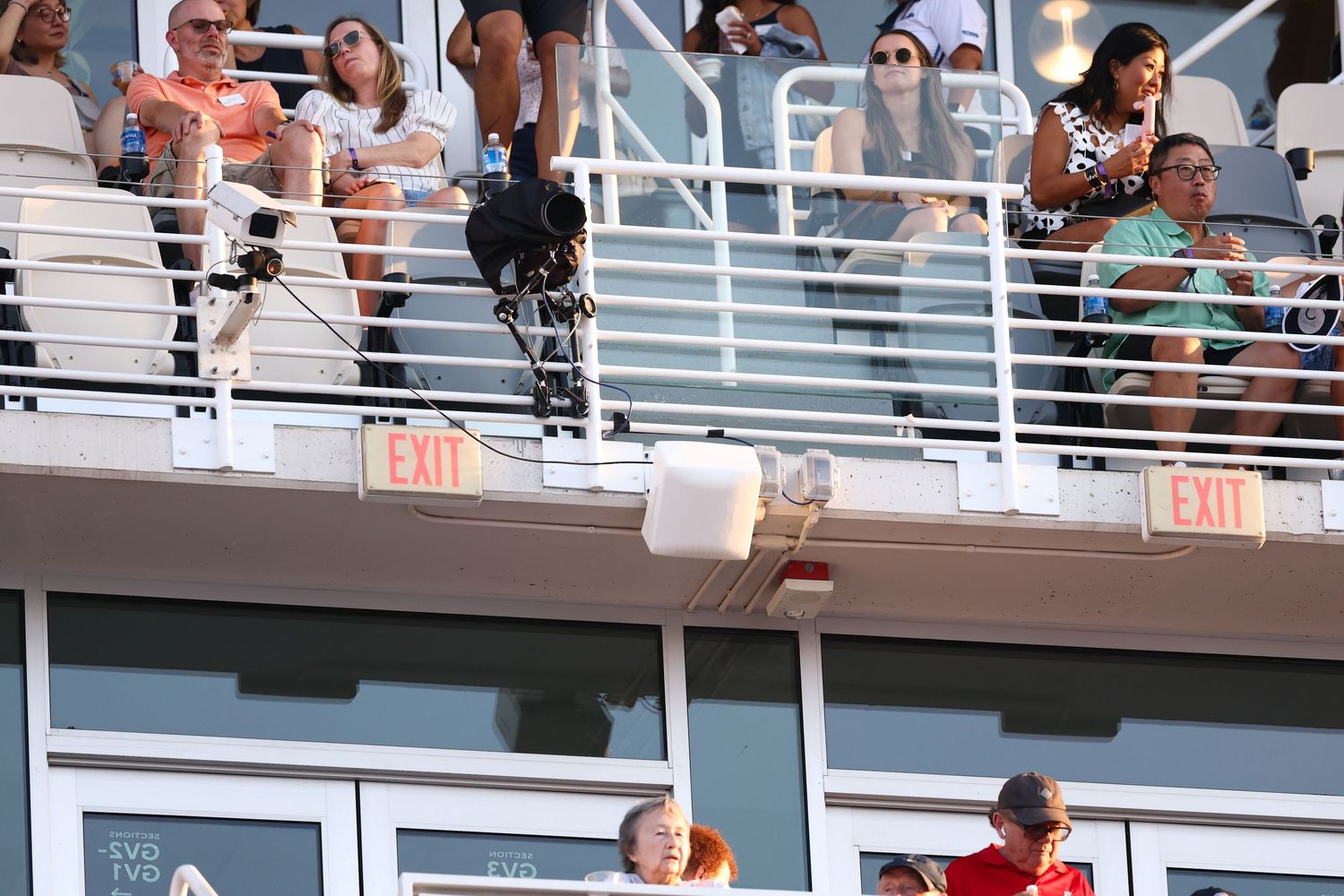

The Suite Remote

The Trophy Remote (Bonus)

Trophy Remote

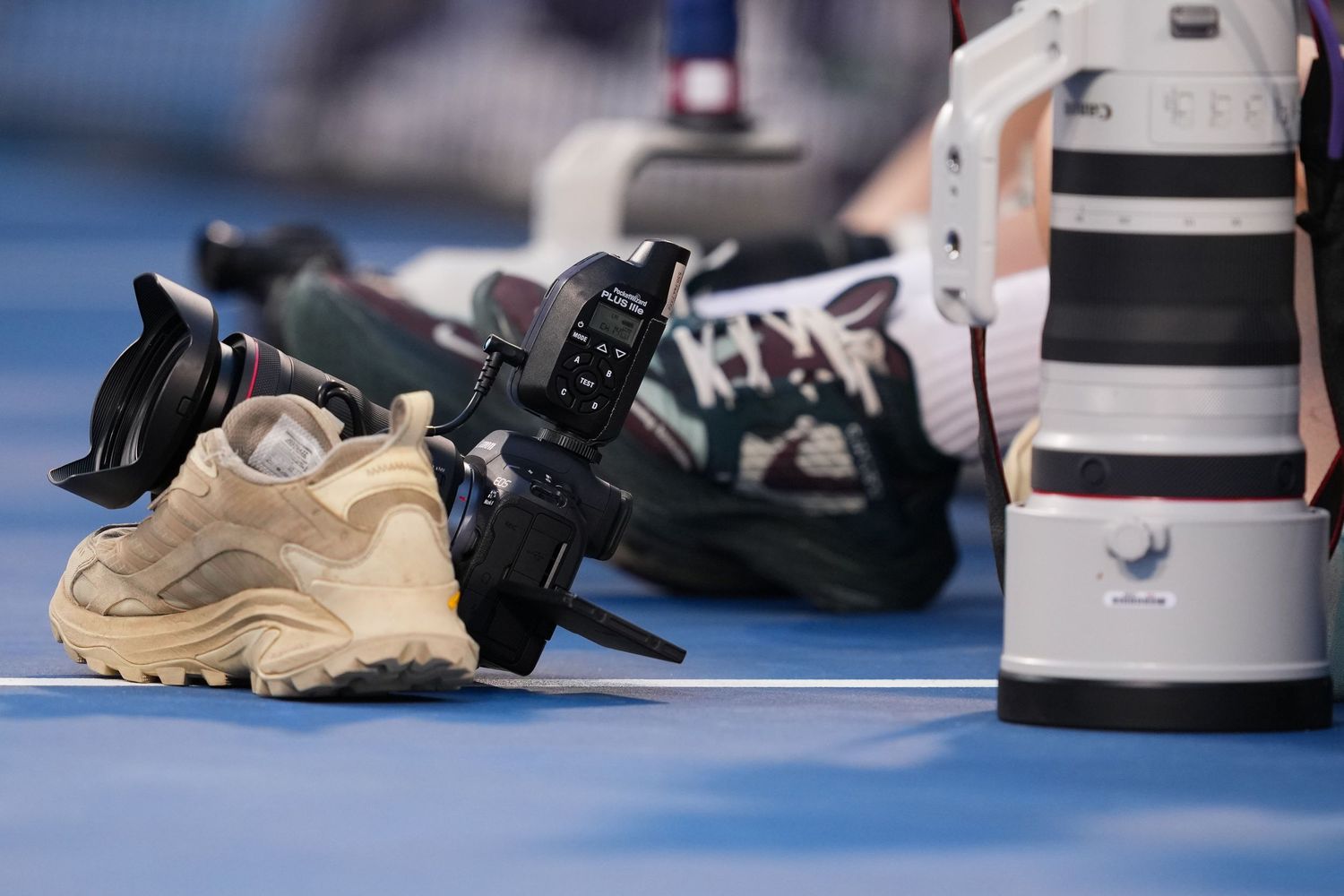

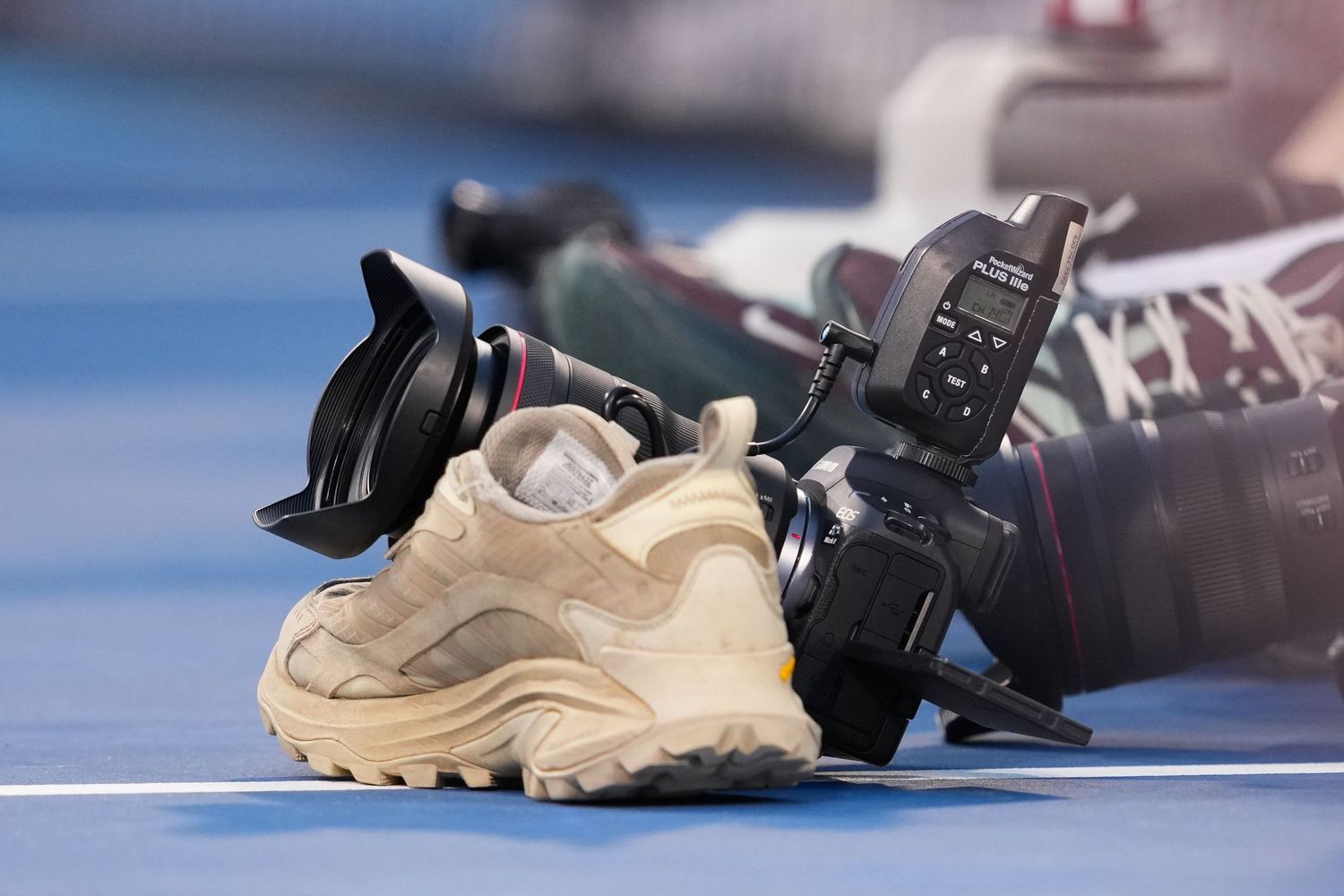

Last minute we decided to throw a 15-35 on an R5 mk. II and put it down in front of the trophy ceremony to capture wides of the confetti. Unfortunately our mount had an issue, so Kathryn rigged it up on her shoe to make it work.

Global Camera Settings

Canon R1

Overall Settings: Aperture Priority, Minimum shutter speed locked at 1/2000

Autofocus: Preview AF [ON]

Whole Area Tracking Servo AF: [ON]

Servo AF: M - Tracking Sens -2, Accel./Decel. Tracking 0

AF Area: [Wide]

Action Priority: [OFF]

Subject to Detect: [People]

Eye Detection: [Auto]

The Team

Photographers


Jared Wickerham

Kathryn Riley

Jeff Dean

Editors


Andrew Wevers
